| MODEL |
K-NVR6104-4B7 |

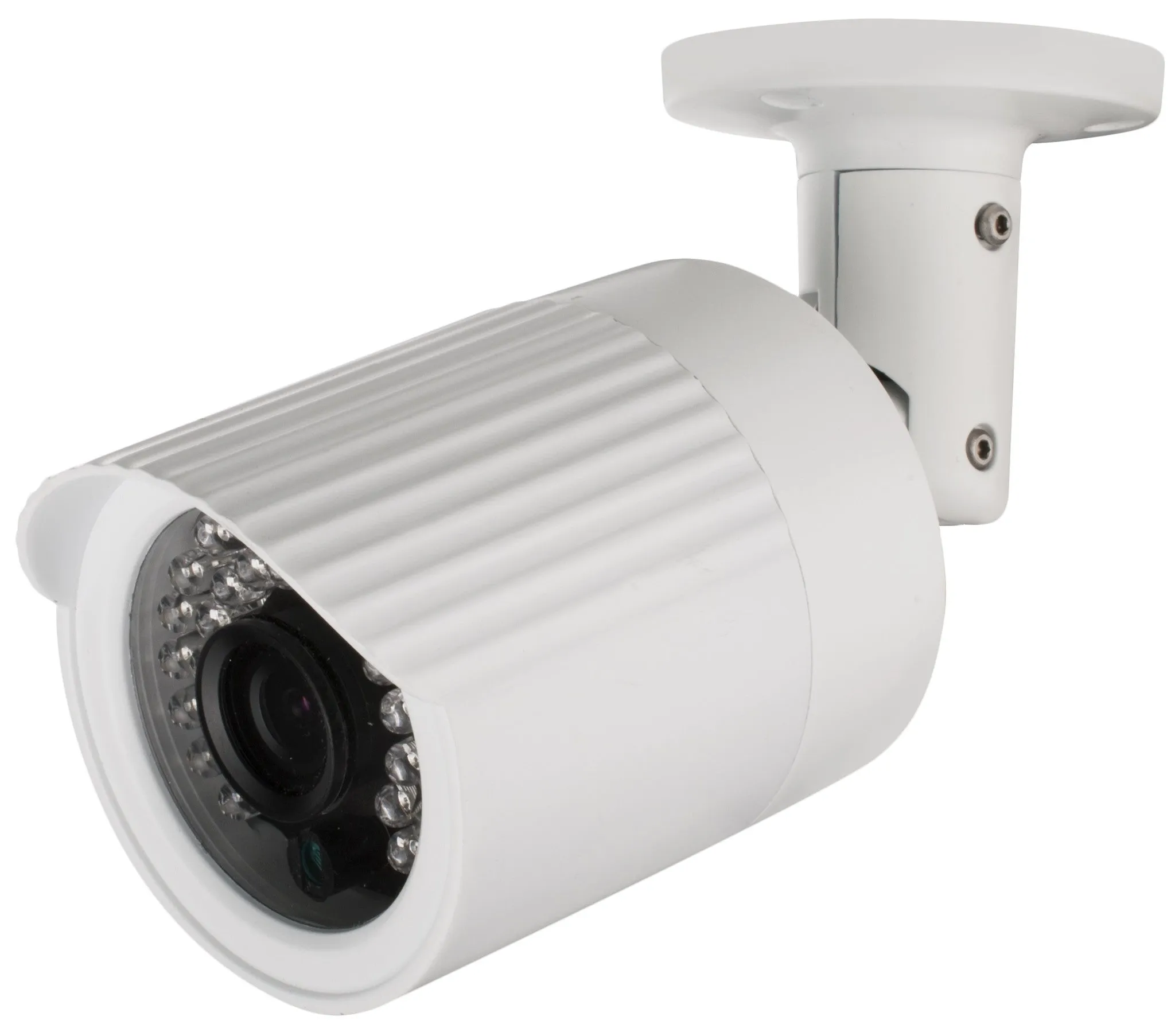

| Camera |
| Model |
IPN-IB42C/036D |
| Pick-up Devices |
1/4" progressive scan 1.3 MP CMOS |
| Effective Pixel |
1280(H)×720(V) |
| Min. illumination |
0 Lux (IR ON) |
| Electronic shutter |
Auto / 1/25s-1/10000s |
| Day/Night |
EXT trigger, ICR |
| Lens |
3.6mm M12, ICR Model |
| IR Distance |
10-15M (30×Φ5) |
| VIDEO |
| Video Input |
4 CH 720P |
| Video compression |
H.264 (High [email protected]) |
| Video Input Resolution |
720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Output |
VGA/HDMI sync output,
1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600 |
| Bit Rate |
16-8000Kbps |
| Image Display |
1/4 |
| Snapshoot |
Support (BMP) |
| Motion Detection |
396 (22×18) surveyed area can be set in every screen and multi sensitivity adjustable (Need IPC supported) |
| VIDEO RECORDING AND PLAYBACK |
| Video Frame Rate |
1-30fps |
| Record Mode |
Manual / Alarm / MD / Regular |
| Playback Synchronic |
4CH 720P |
| Search Method |
Time, Calendar, Event, Channel |
| Video Playback |
Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen, Roller amplification time ball precise playback |
| VIDEO BACKUP |
| Interface |
1 SATA |
| HDD Capacity |
Support up to 4TB HDD |
| Backup location |
Local HDD, Network |
| Backup Method |
Network, USB storage device, USB recorder |
| NETWORK MANAGEMENT |
| Protocol |
TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, ONVIF |
| EXT INTERFACE |
| Network Interface |
RJ45 10M/100M adaptive Ethernet port |
| Alarm |
N/A |
| RS-485 |
1 RS485 port, support FS-KT301 keyboard |
| USB Port |
2 USB2.0 |
| GENERAL |
| Operation Temp And Humidity |
-10°C ~ 55°C / 10%-90% |
| Power supply |
DC15V/3A (Power plug can be select) |
| Power Consumption |
DVR: 10W (Without HDD), Camera: 6W (IR ON) |
| Unit Dimension (mm) |
(L)218 × (W)213 × (H)48 |
| Weight |
NVR: 1Kg, IPC: 540g |
| INTERFACE |
| 1. USB2.0 |
6. RS485 |
| 2. Audio Input |
7. HDMI Video Oputput |
| 3. DC12V Power supply |
8. RJ45 Power supply to IPC |
| 4. VGA Video Output |
9. RJ45 |
| 5. Audio Output |
|
|
|
