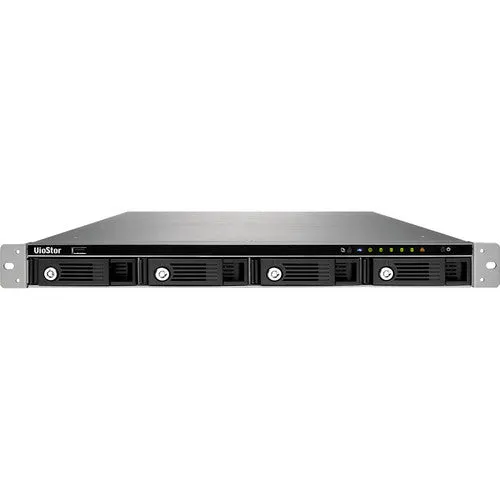

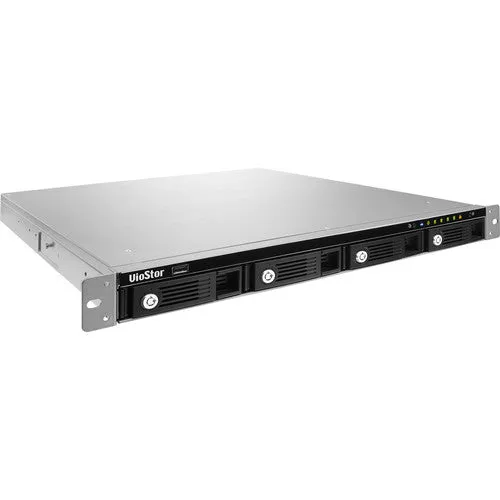

The 16-Channel 1080p NVR from QNAP is powered by an Intel Quad-Core 2.6 GHz processor to deliver a throughput rate of up to 250 Mbps to ensure stable recording and smooth playback of multiple cameras. This NVR can support up to 24TB of total storage with a 6TB hard drive in each 3.5" bay, to accommodate H.264 compression. It also supports a 1080p display resolution at up to 200 fps via HDMI. The fan provides system heat dissipation with minimal vibration, and is replaceable without interrupting system operations.

The NVR supports RAID 0, 1, 5, 5 with hot spare, 6, and 10, as well as JBOD and linear configurations. Hot-swappable drives allow you to replace hard drives without interrupting system operations. The QVR system lets you manage and monitor multiple cameras in real time using a web browser. This NVR supports multiple port-trunking modes in order to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operation.

Up to 250 Mbps throughput for recording and playback from up to cameras

HDMI output delivers 1920 x 1080 resolution at up to 200 fps

H.264, MPEG-4, MJPEG, and MxPEG compression

E-map function for live-view monitoring

Supported port-trunking modes include balance-RR (round robin), active backup, balance XOR, broadcast, IEEE 802.3ad, balance-TLB (adaptive transmit load balancing) and balance-ALB (adaptive load balancing).

Install free QSCM Lite app for advanced CMS features
