The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

TECHNICAL SPECIFICATIONS

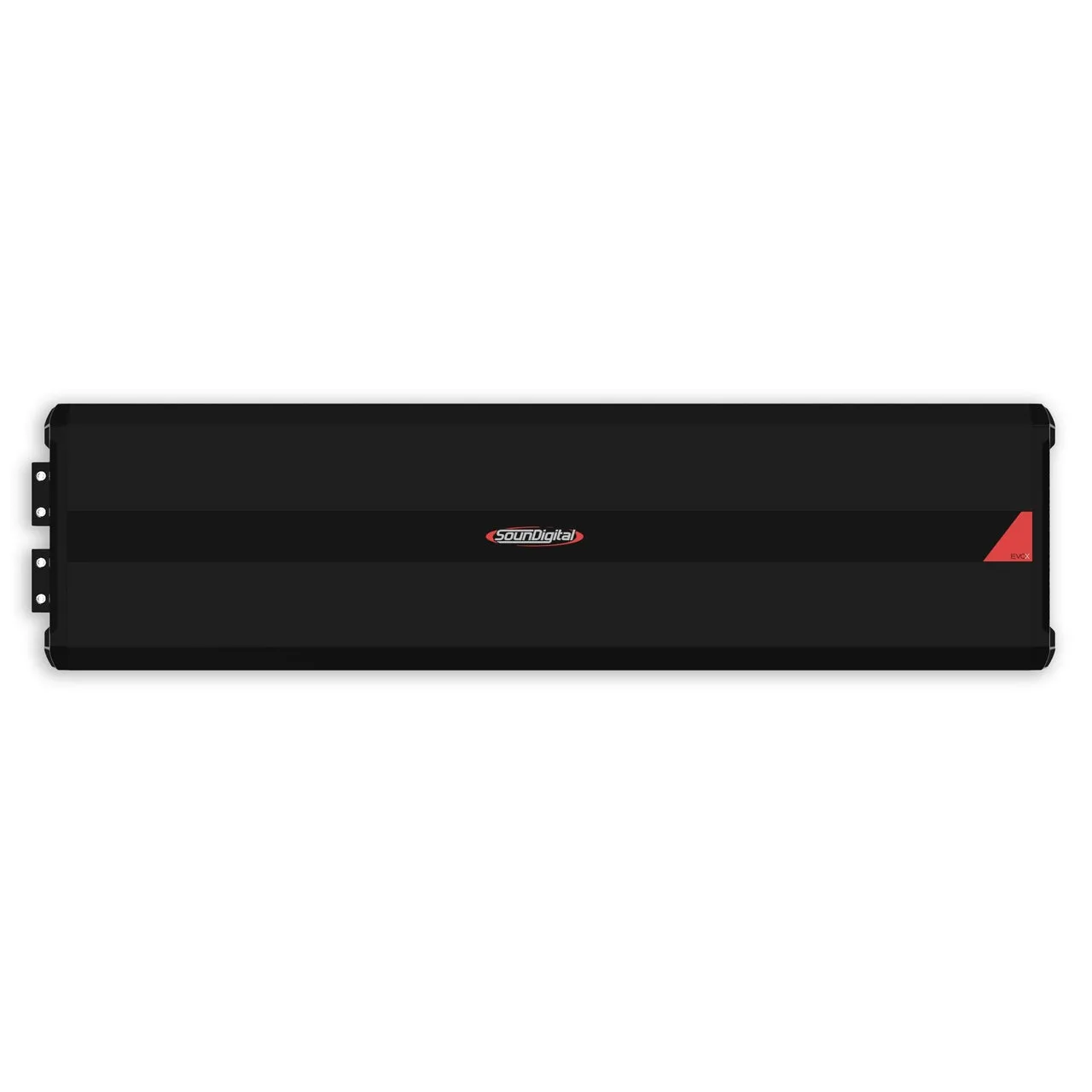

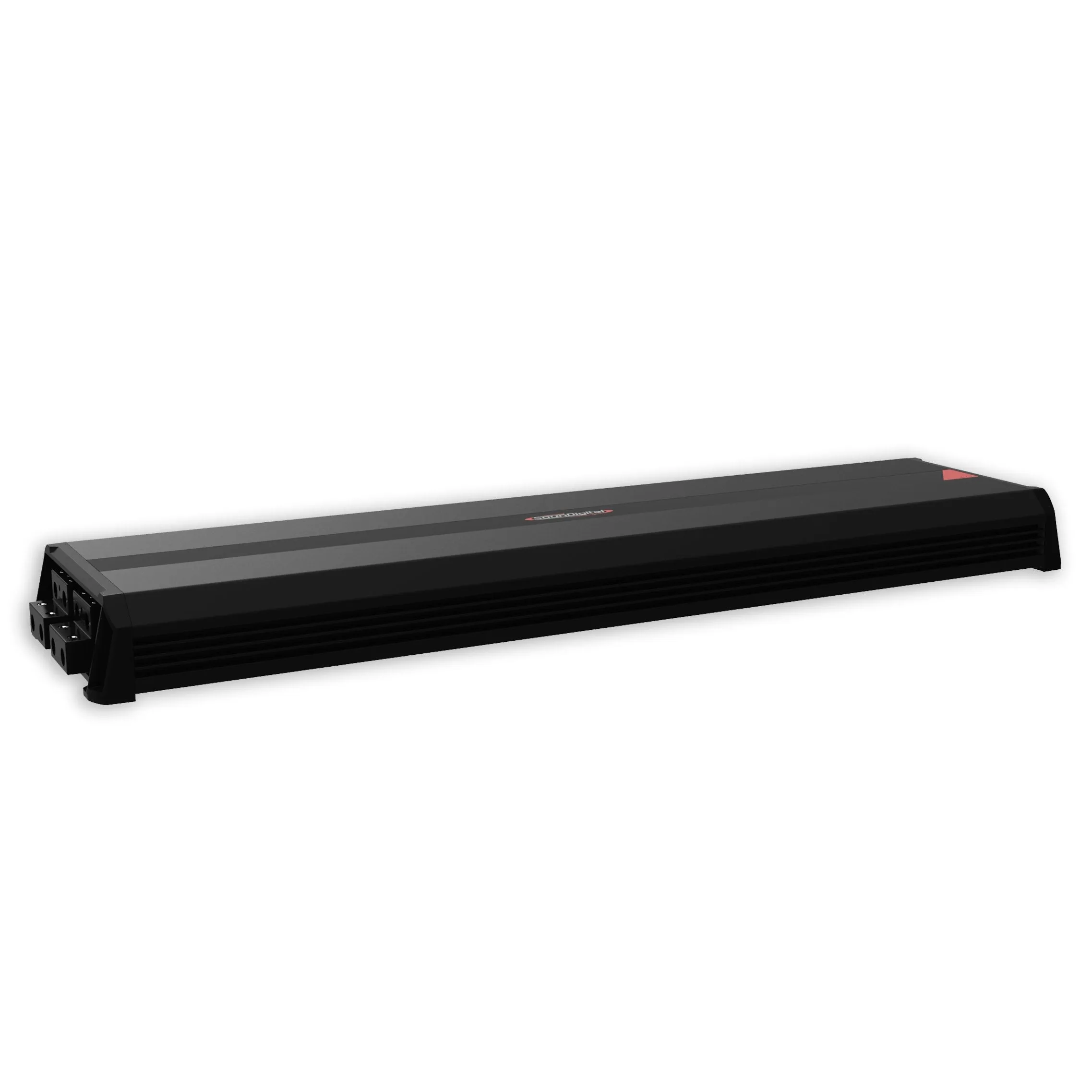

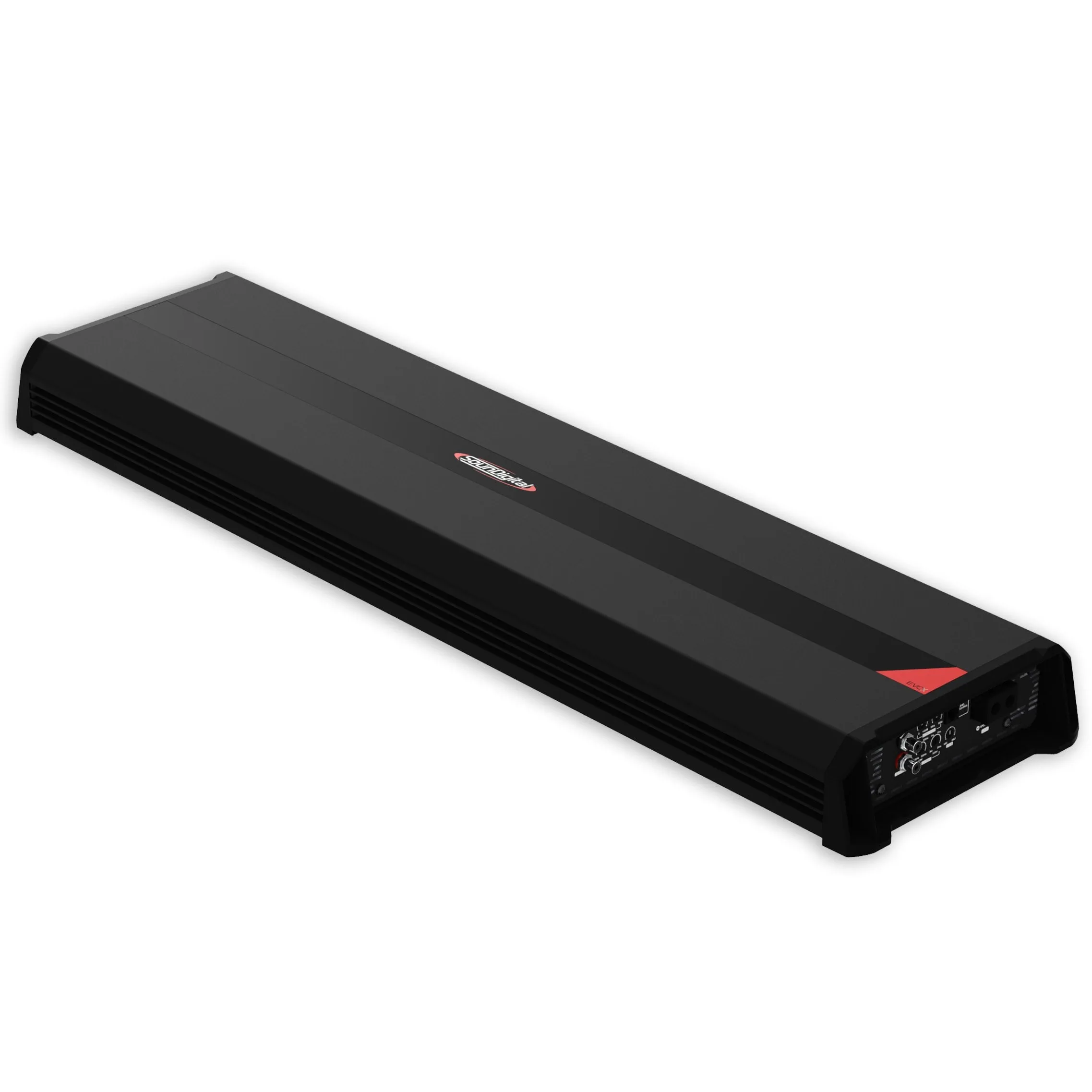

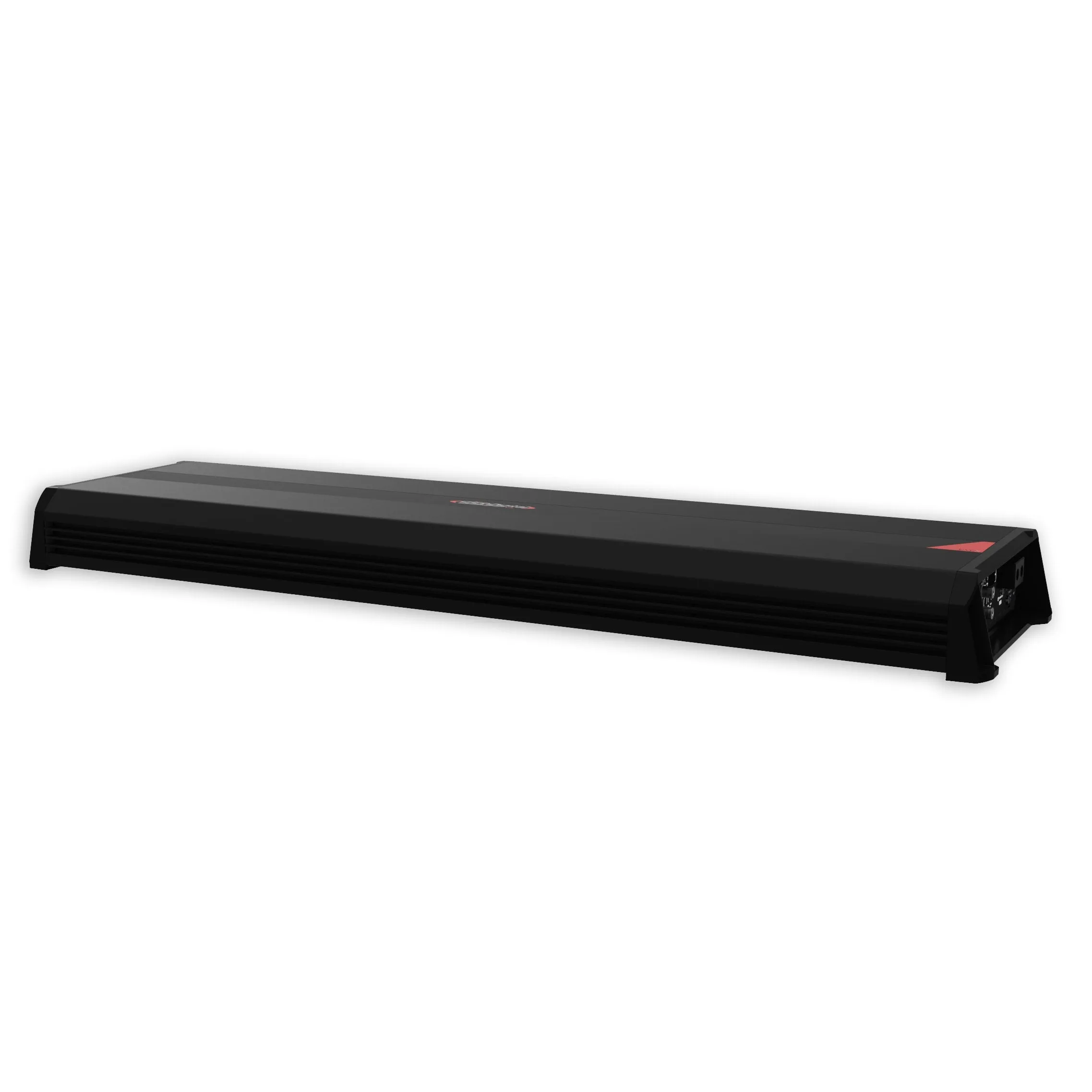

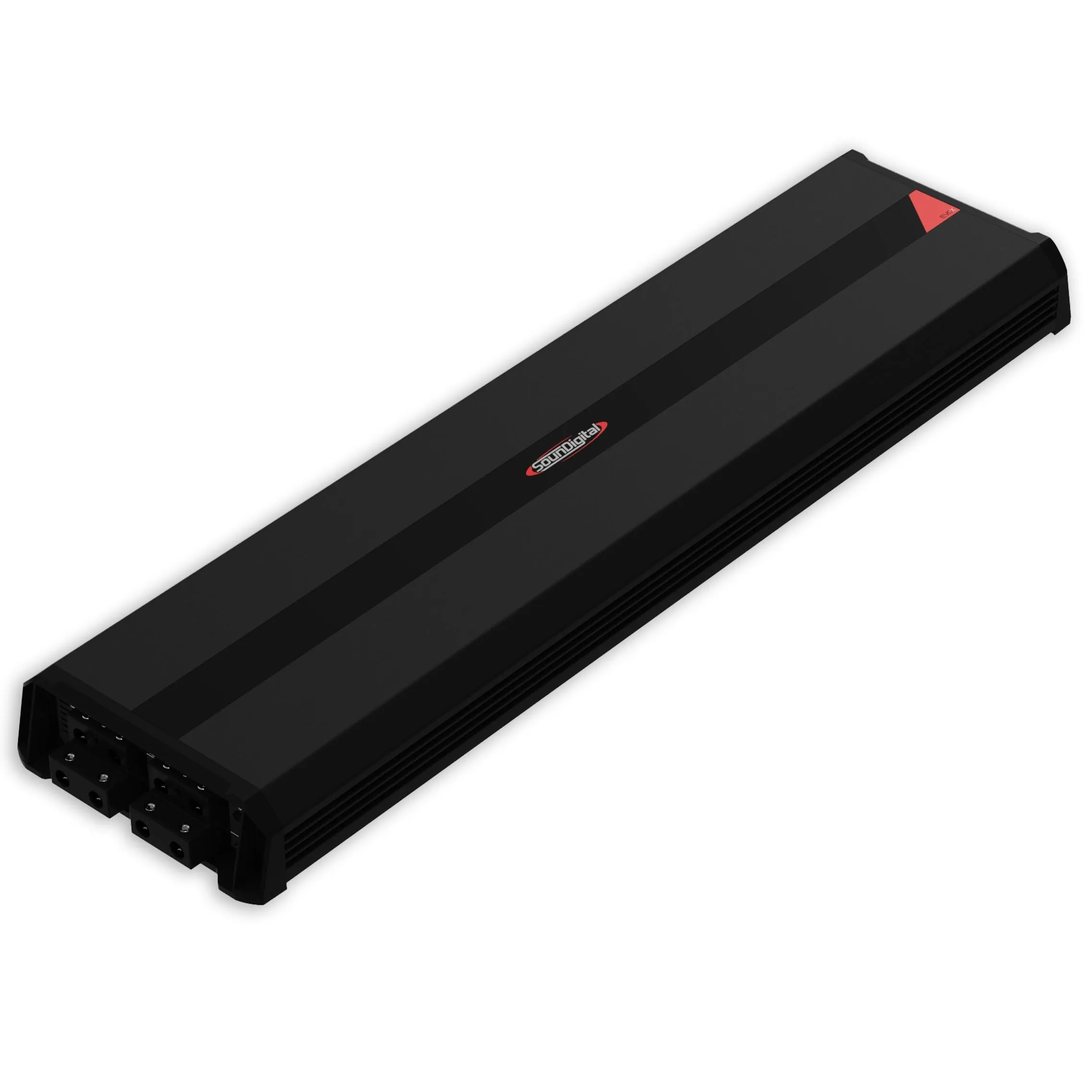

35000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 15246 WRMS
Power @ 12.6V @ 2Ω: 1 X 23100 WRMS
Power @ 12.6V @ 1Ω: 1 X 35000 WRMS
Power @ 14.4V @ 4Ω: 1 X 16999 WRMS
Power @ 14.4V @ 2Ω: 1 X 25757 WRMS
Power @ 14.4V @ 1Ω: 1 X 39025 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 1715 A
Current Draw (Max): 3429 A
Recommended Fuse (Music): 3500 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD N (10% Rated Power): 0.3%
Product Dimensions: 33.9 x 8.8 x 2.8 in
Product Dimensions: 86.3 x 22.5 x 7.1 cm
